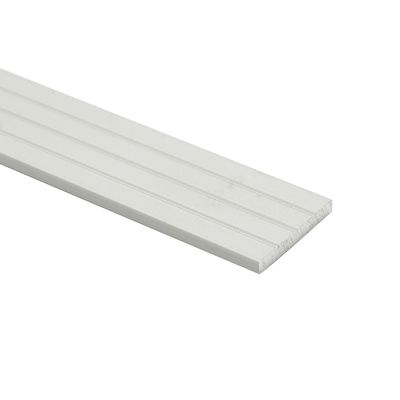

Led strip aluminum profile Aluminium Extrusion Heat Sink Profiles

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA21
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PMMA/ PC, Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted Dimension: 20*2.5mm
No.: KA21 Usage: Led Strip Heat Sink
High Light:

6063 t5 heatsink extrusion profiles

,

6063 t5 extruded heat sink profiles

,

6063 t5 led tape light profiles


Product Description

Surface LED Strip Aluminum Bar Heatsink Profile Without PC Cover


Surface-mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 20mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.

Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.


Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 20mm width

Main Specifications

Model No.:   KA21
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)20.0*(H)2.5 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 20mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted
Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

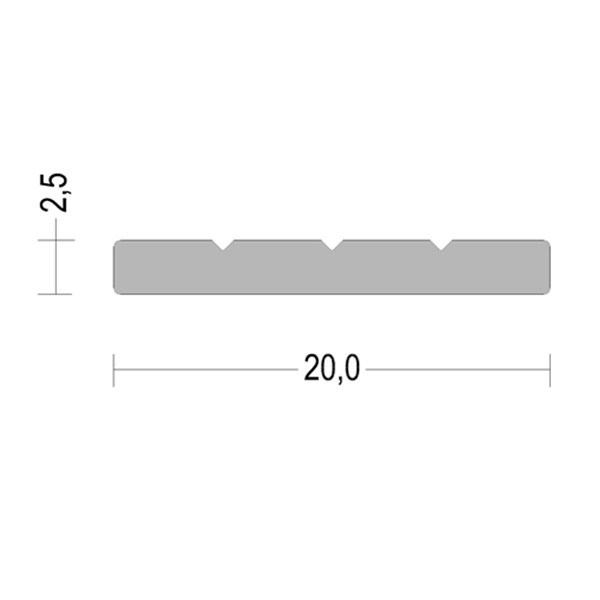

Drawing:

Led strip aluminum profile Aluminium Extrusion Heat Sink Profiles 0

Installation

Led strip aluminum profile Aluminium Extrusion Heat Sink Profiles 1



Application

Led strip aluminum profile Aluminium Extrusion Heat Sink Profiles 2

FAQ:

Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.


Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
