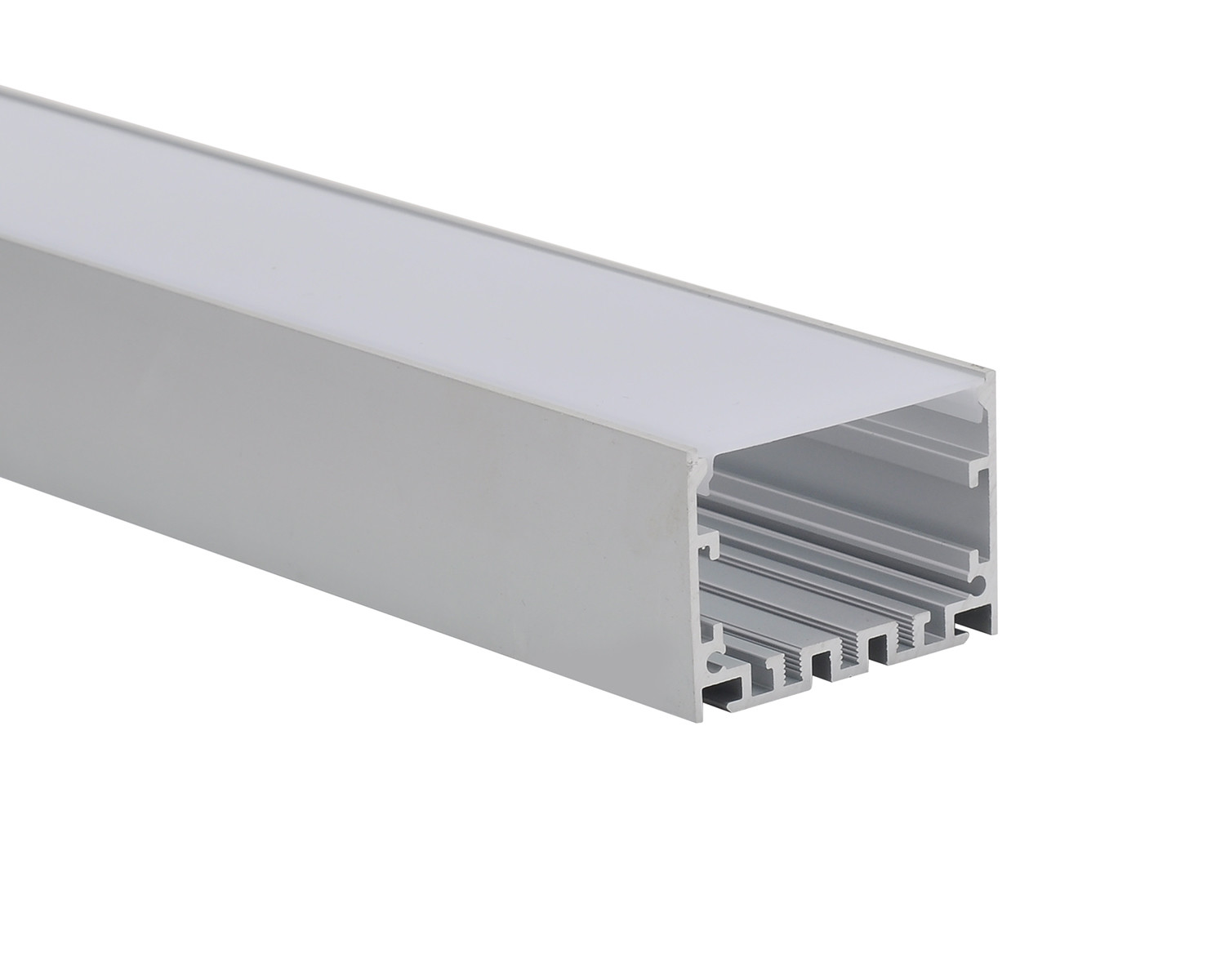

6063t5 50x50mm Pendant PC Cover Led Strip Channel With Diffuser

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN32
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Usage: Led Strip Heat Sink Length: 2m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted, Suspended
Dimension: 50*35mm No.: KN32
High Light:

6063t5 led strip mounting channel

,

50x50mm led strip mounting channel

,

50x50mm Pendant led strip mounting channel


Product Description

50x50mm Mount Pendant LED Strip Aluminum Profile Black PC Cover


These extrusions are perfect to be installed but not limited to, in any flat surfaces whether it is a ceiling or wall, under or on top of the cabinet, display cases, shelvings, and art niches. Installation is simple and can be done easily. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.

Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly
- Mounted to the surface with appropriate mounting clips

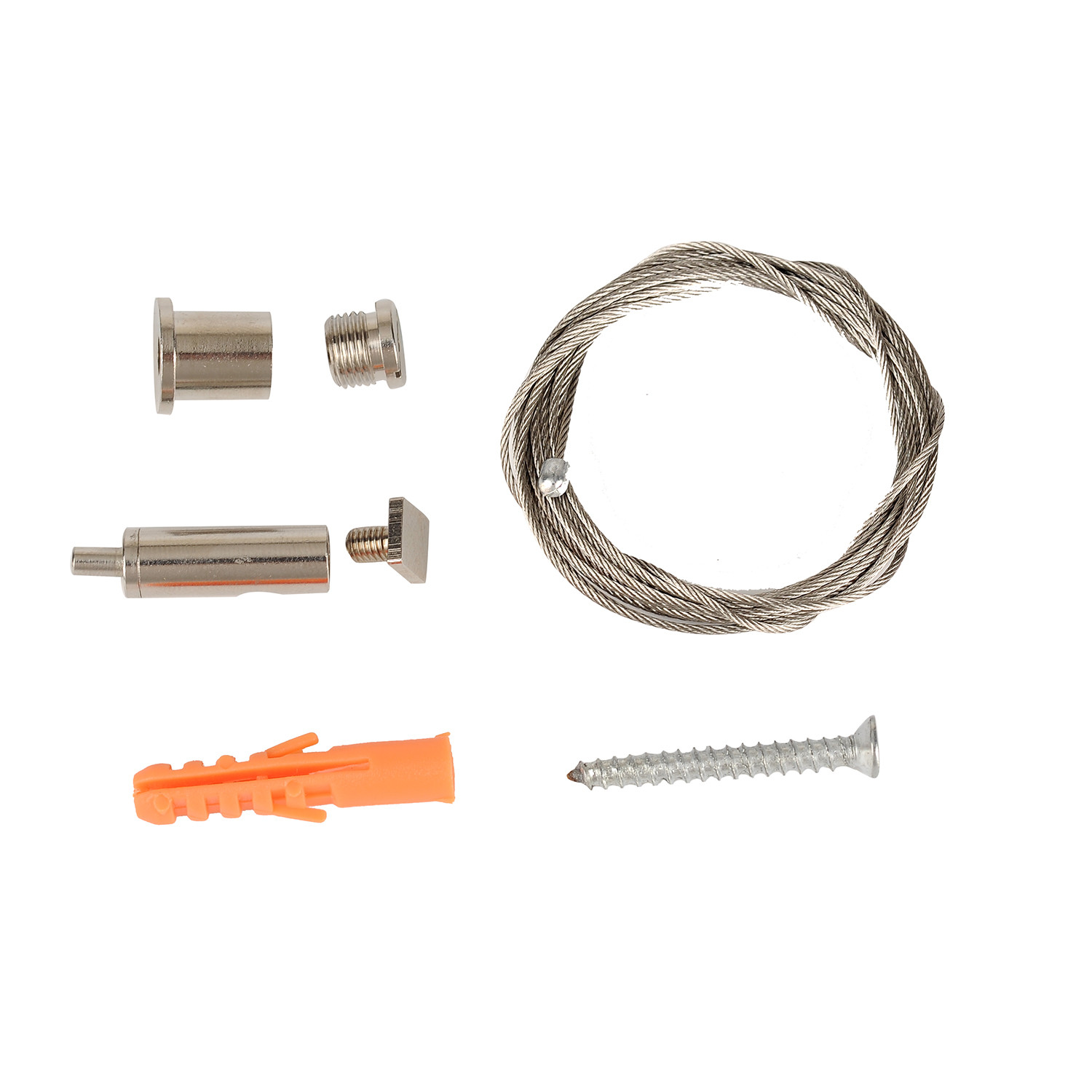

- Suspended with the spring wiring system


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 39mm width

Main Specifications



Model No.:   KN32
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)50.0*(H)35.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 39mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

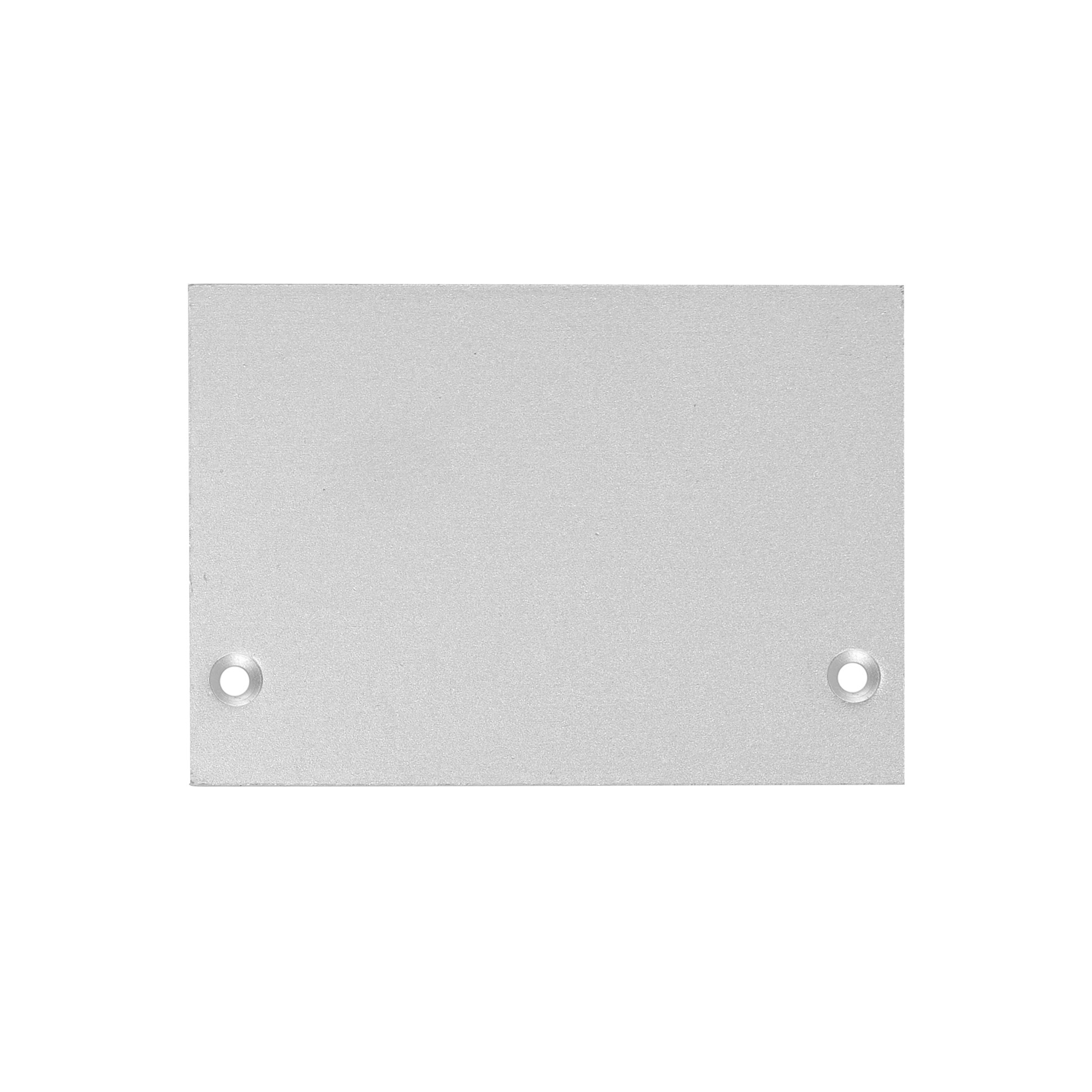

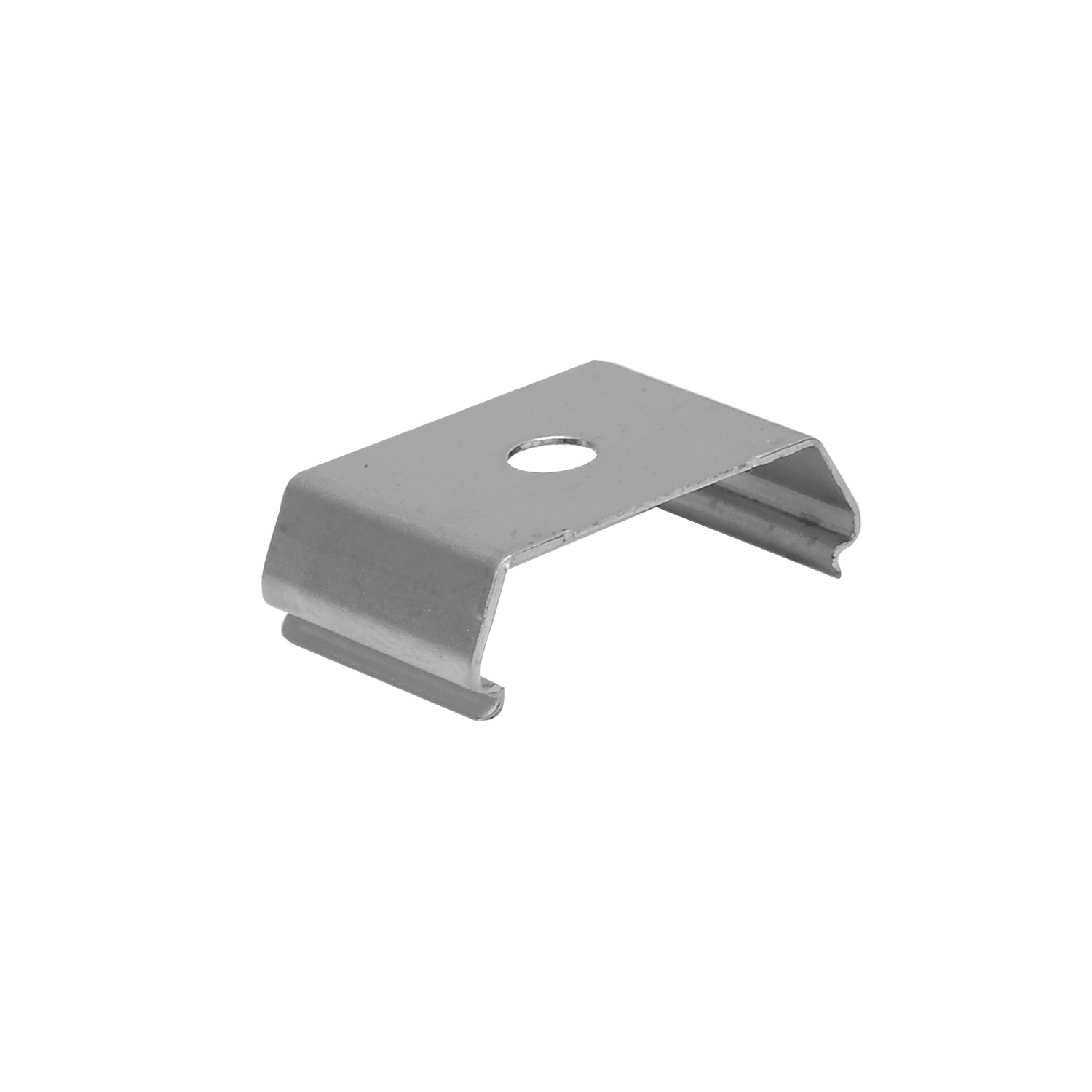

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

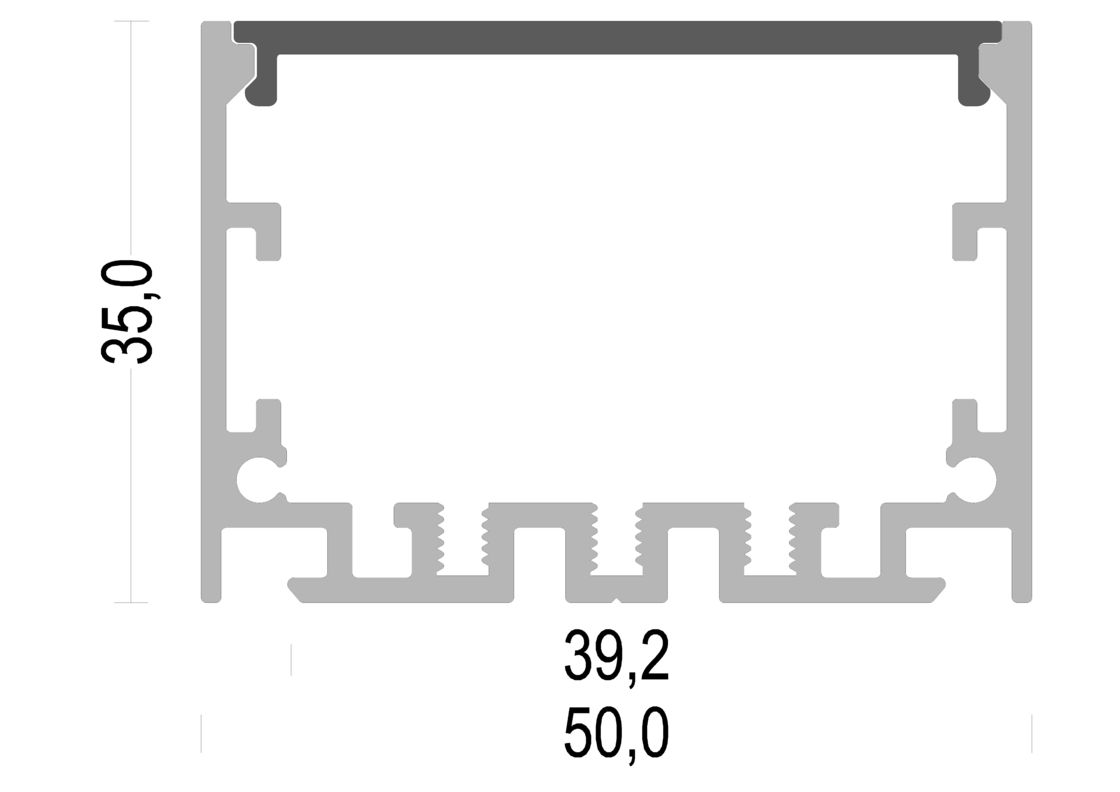

Drawing:


6063t5 50x50mm Pendant PC Cover Led Strip Channel With Diffuser 0

Application

6063t5 50x50mm Pendant PC Cover Led Strip Channel With Diffuser 1

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.



Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
