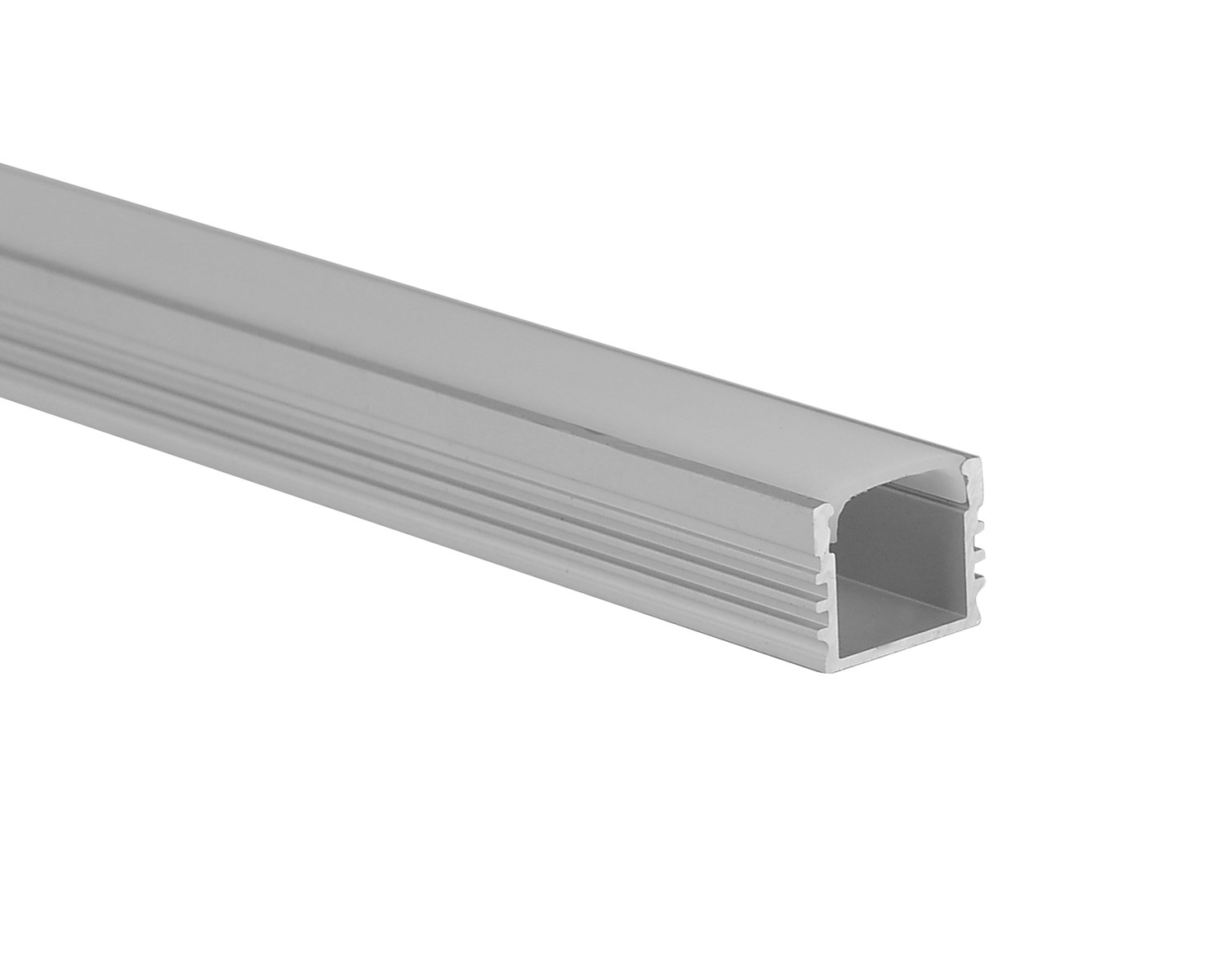

W16.5mm H13.5mmLinear Lighting 6063 T5 LED Strip Aluminium Profile with PC diffuser cover

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KL2
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC
Color: Frosted Accessories: End Caps, Clips
Usage: Led Strip Heat Sink Supply Ability: 100Tons/Month
Length: Avialable On Request Finished Color: Silver, Black, White
High Light:

16mm Linear Lighting wide led channel

,

6063 T5 wide led channel

,

16mm led aluminum channel with cover


Product Description

LED Linear Lighting Accessories Mount Led Strip Aluminium Profile


Led aluminum profile extrusion is designed for led strip light housing. Just like the below photo. KC Lighting has more than 200 kinds of led aluminum profiles. The led aluminum profile is design for led linear lighting. Normally it is including aluminum profile, PMMA diffuser, end cap, and clips.

Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 16mm width

Main Specifications



Model No.:   KL2
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)16.6*(H)13.5 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 16mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

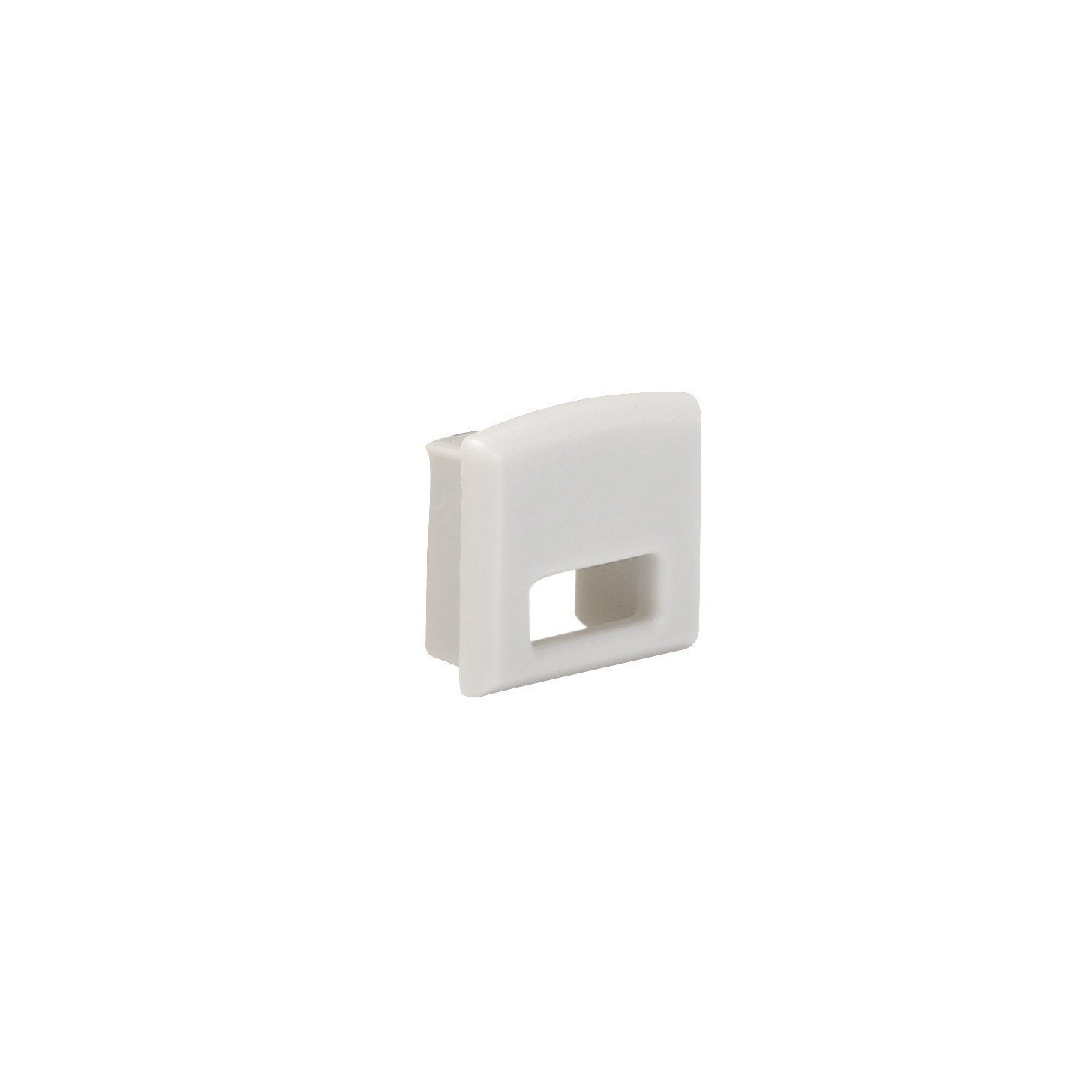

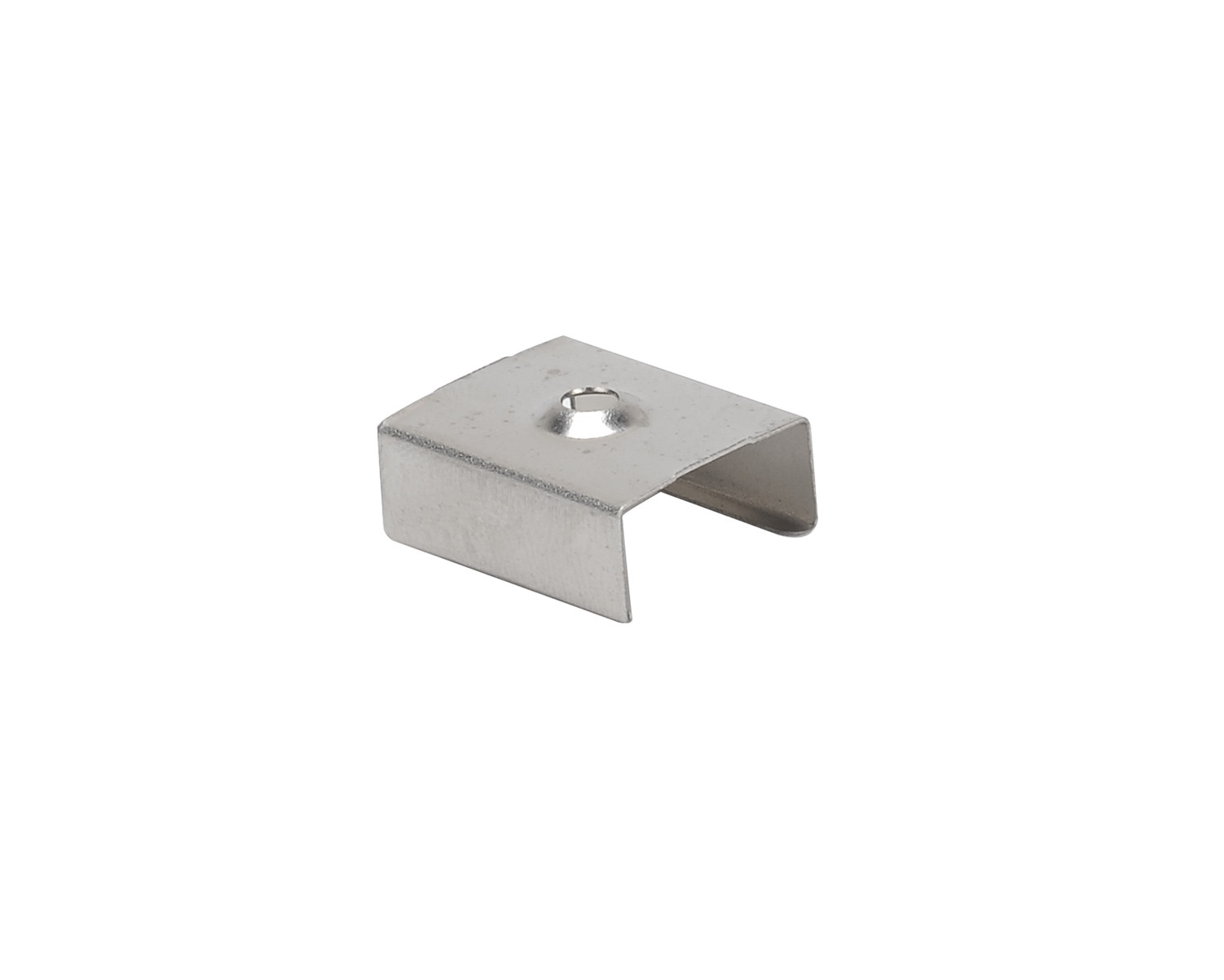

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

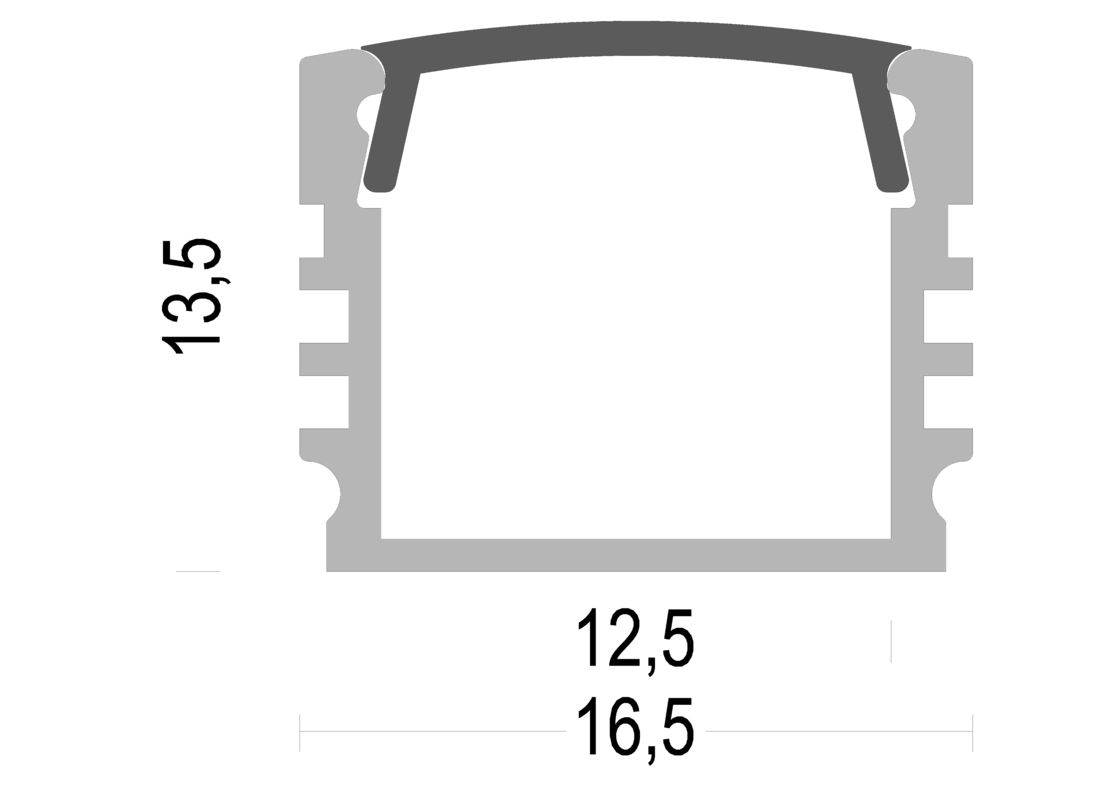

Drawing:
W16.5mm H13.5mmLinear Lighting 6063 T5 LED Strip Aluminium Profile with PC diffuser cover 0

Installation

W16.5mm H13.5mmLinear Lighting 6063 T5 LED Strip Aluminium Profile with PC diffuser cover 1



Application

W16.5mm H13.5mmLinear Lighting 6063 T5 LED Strip Aluminium Profile with PC diffuser cover 2

FAQ:


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.



Q: Can we order a special length for the aluminium profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.



Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.



Q: What is your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.
