| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | K30 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Finished Color: | Silver, Black, White | Length: | Standard 2m, 2.5m Or Max.6m On Request |
|---|---|---|---|
| Indstallation: | Mounted | Material: | 6063 T5 Aluminum Alloy |
| Diffuser: | PMMA/PC, Opal/Frosted/Clear | Process: | Extrusion |
| Shape: | Flat | Packing: | PE Bag + Carton / Customized Package |
| High Light: | 2m Square frosted led strip diffuser,2m PC PMMA Cover aluminium track for led strip,2m aluminum led profile housing |
||

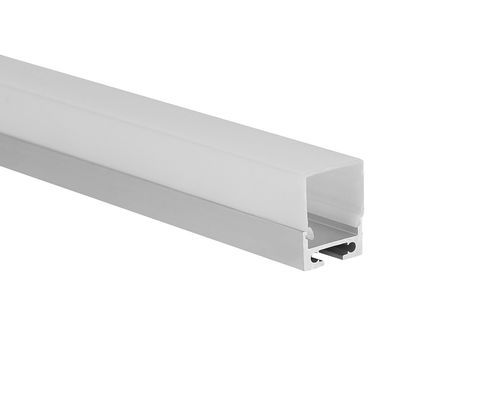

Wide Flat Mounted LED Strip Aluminium Profile And PMMA Opal Cover
Surface-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 16m width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.
Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 16mm width
Main Specifications
| Model No.: | K30 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)20*(H)27mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 16mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PMMA/PC |
| Diffuser finished: | Opal/Frosted/Clear/ Black |

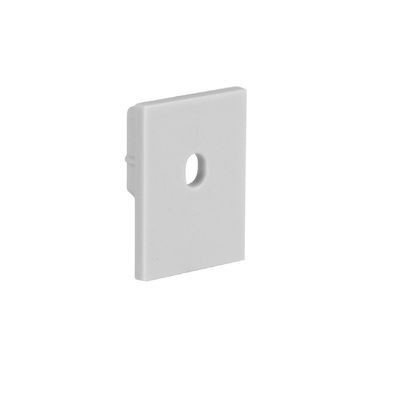

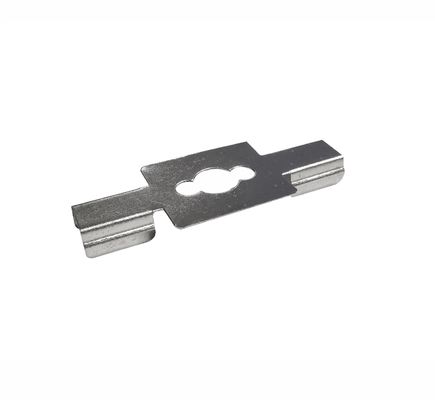

| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

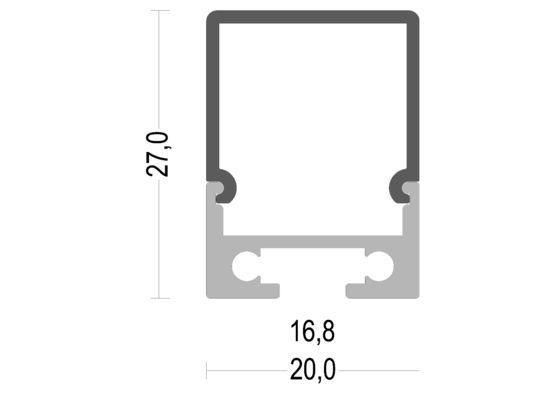

Drawing:
Installation

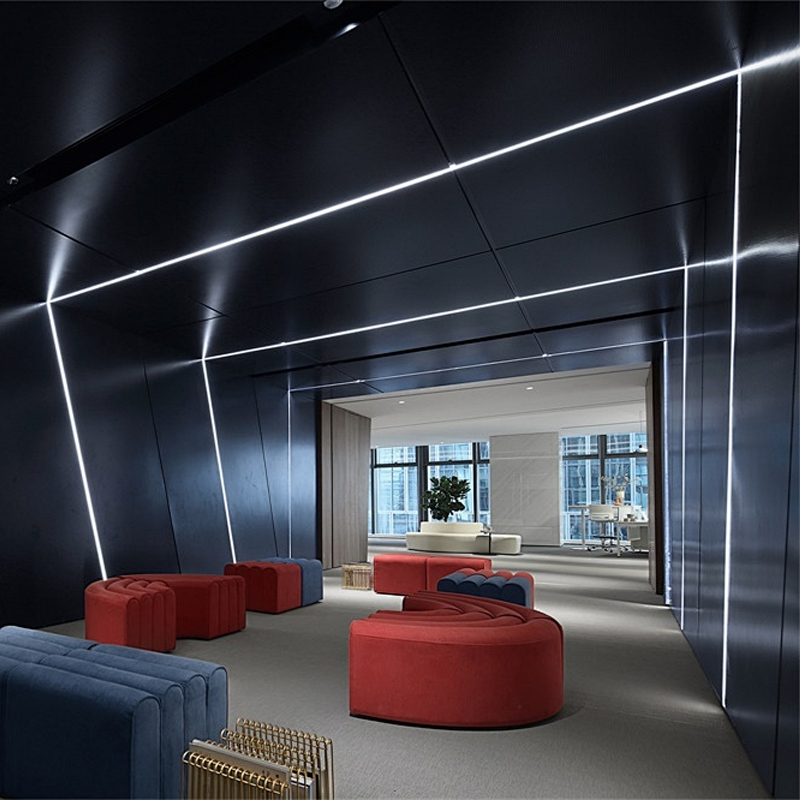

Application
FAQ:
Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.
Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover ( Frosted, clear).
Q: How many colors of led aluminum profile available? Collapse
A: We can offer 3 kind colors of led aluminum profile. White, black, and sliver.
Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.
2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.
Q: How to make a led aluminum profile connector?
A: We can offer some kinds of led aluminum profile connectors to you. Of course, some clients can use a soldering machine to connect the led aluminum profile.
