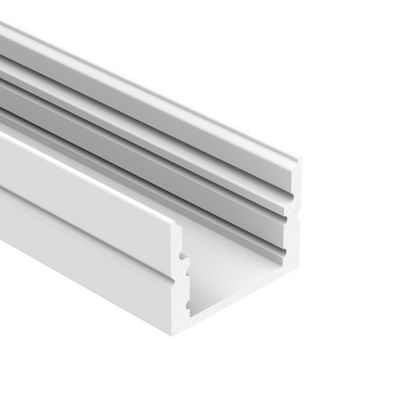

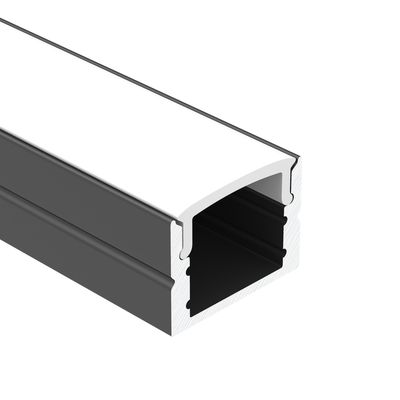

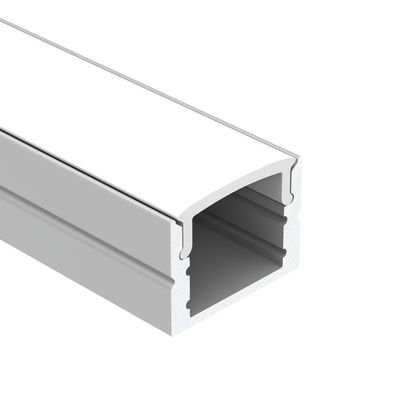

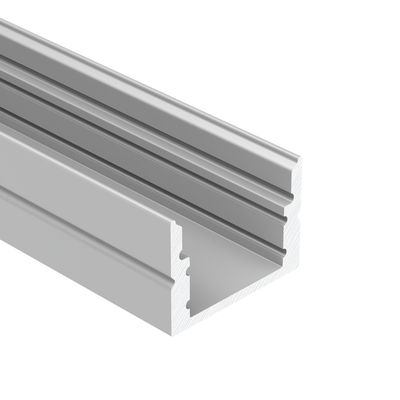

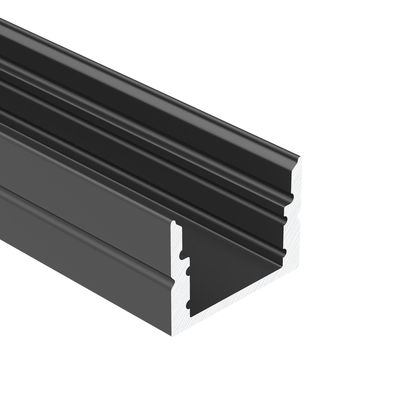

PMMA Diffuser IP20 LED Aluminium Track Channel 6063 Alloy

Basic Information
Place of Origin: China,Guangdong
Brand Name: K&C
Model Number: K17-1
Minimum Order Quantity: 100Meters
Price: EXW SZ $3.84/M
Packaging Details: Normal Package:1.Aluminum with PE bag2.PC with protective sheet3. Mixed packed into strong outer carton4. Carton protect with angle beadCustomized special package available
Delivery Time: 3-15 days depends on quantity
Payment Terms: T/T, Western Union
Supply Ability: 100000 Meter/Meters per Month
Detail Information
Warranty(Year): 3-YEAR Lighting Solutions Service: Provide Suggestions
Luminous Efficacy(lm/w): 100 Material: 6063 Alloy Aluminum
Shape: Line Style: LED Aluminum Profile
Product Name: LED Aluminium Profile Lighting Product Size: H12mm*W16.8mm
Function: Decorative Illumination IP Grade: IP20
Installation: Mounted, Suspended Surface Treatment: Anodized
Pcb Width|: Within 12.2mm AL Material: Aluminum 6063-t5
Cover Material: PC Cover Colors: Opal, Semi-clear, Clear
Port: SHEKOU OR YANTIAN
High Light:

PMMA Diffuser LED Aluminium Track Channel

,

IP20 LED Aluminium Track Channel

,

6063 Alloy Aluminium Track Profiles


Product Description



Product Description

16.8*12mm LED aluminium track channel for indirect lighting by led strips



Application

- For anywhere LED Lighting To Heat Dissipation,To Keep LED Lighting Long Life-span.

- Bright Your surroundings And Keep you Safe;

- Decorative Architecture/Home,To Make Up More Brightness And Warm Amostphere.

- Long Life-span can keep you save cost.

- For Home,Commercial, Architectural Lighting



Assembly

- Suspended to ceiling;



Additional information

- The profile is such hard;

- Suit For within 12mm width LED strip PCB light, and LED Strip PCB light can easily buy from any lighting retail store;

- Can be used lasted for five year;



Main Specifications

Model No.: K17-1

Item Type: LED Strip Aluminium Profile

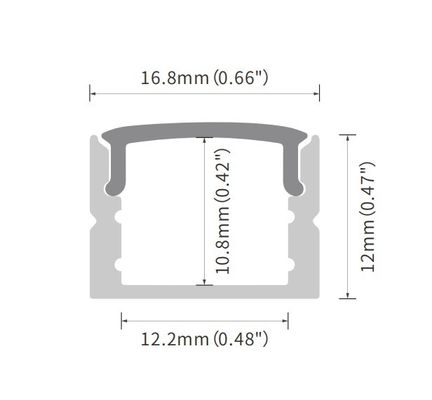

Dimensions: (W)16.8*(H)12 mm

Standard length: 2m/pcs

Customized-length: Available on request

Suitable for led strip: PCB width up to 12mm

Material: 6063 T5 Aluminum Alloy

Treatment: Sandblasting oxidation

Finished color: Silver, black, white

Diffuser material: PMMA/PC

Diffuser finished: Opal/Frosted/Clear/ Black

Accessories: End caps, clips

Installation: Surface-mounted

Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box

Customized Package: Available on request

Handling time: Samples within 3 working days

Batch order: 3-15 working days upon stocks

Shipment : By sea, by air, by express for option



Packing&Shipping
PMMA Diffuser IP20 LED Aluminium Track Channel 6063 Alloy 0
Certifications
PMMA Diffuser IP20 LED Aluminium Track Channel 6063 Alloy 1
Company Introduction
K&C’s Aluminum profiles are the perfect choice for you to broaden your LED light strips installation to wider ranges. K&C offers a wide range of aluminum profiles, which is the perfect combination of designing and lighting. This enables the architects, in-door designers and retailers to offer more diverse lighting effects to their customers.

We have over 200 kinds of aluminum profiles for you to choose, and we also have a lot of profiles in stock, therefore, the fast delivery is available. Our standard length is 2 meters, and some in 2.5 meters, but we will also customized for you if you have any special requirements.

The aluminum extrusion led profile systems for LED strips make it possible to design lighting fixtures in any size and shape on desire. Recessed, corner, pendant and surface mount profiles can come with cold, warm, RGB and day light LEDs with regulated intensity of light.

We are flexible towards the needs of the market, and sensitive to the market trends. We are dedicated to offering the best
products to our customers . We do wish to open up the long and trustworthy cooperation with you.
For more information on our company and other products, please visit our website WWW.LEDS-KC.COM

K&C Lighting aluminum extrustion factory show:

* Floor space: About 66,000 square meters
* Worker: 200 people
* Extrusion machine: 1500 tons, 1800 tons, 2500 tons, three specifications
* Machine: 11, and seamless pipe production workshop
* Oxidation pond: 6.2 meters long
* Office staff: 12 people
* Aluminum tank packers: 20 people
FAQ
Q1: Can I take samples?
A1: Yes, we provide 10CM-20cm / pc samples and free accessories.

Q2: What is your standard length? And maximum length?
A2: We have 2 meters, 2.5 meters or even 3 meters long, the maximum length is 6 meters, and the minimum order quantity is 100M.

Q3: Do you accept OEM and ODM?
A3: Yes, we have own mold shop and rich experience in OEM and ODM services.

Q4: How do you pack the goods?
A4: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.

Q5: What is your delivery time?
A5: Samples within 3 working days, batch order 3-15 working days Question

Q6: How do you ship the goods and how long?
A6: Usually by international express delivery such as DHL, UPS, FEDEX, TNT (3-7 working days), air or sea

Q7: Which lighting exhibitions do you participate in?
A7: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.
