Led aluminum channel with PC diffuser fot Recessed linear lighting

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN5
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear/Black Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
High Light:

33.8mm recessed aluminium led channel

,

33.8mm led strip recessed channel

,

2m/pcs Anodized recessed aluminium led profile


Product Description

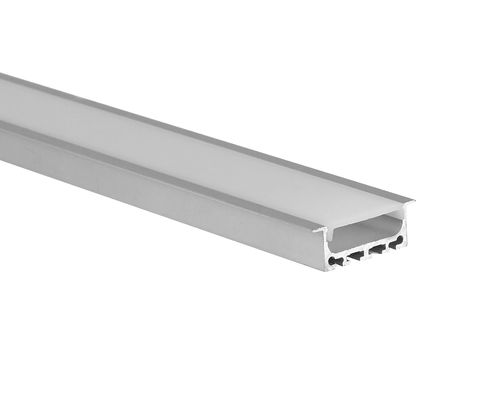

33.8mm(W) LED Lamp Housing for LED Strip Anodized Aluminu with 3 Types Cover Recessed Aluminum LED Profile


Recessed-mounted high-quality anodized LED Lamp Housing which is dedicated for standard led stripe light up to 18.3m width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We support to our customers three different diffusers: square, straight and arcs. We also offer several different accessories such as PC cover, mounting clips, end caps and hanging accessories which make it more flexible.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting

- Exhibition booth LED lighting

Assembly
- Mounted to the groove with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 5mm width

Main Specifications



Model No.:   KN5
Item Type:   Recessed Aluminum LED Profile
Dimensions:   (W)33.8*(H)11.6mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 18.3mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

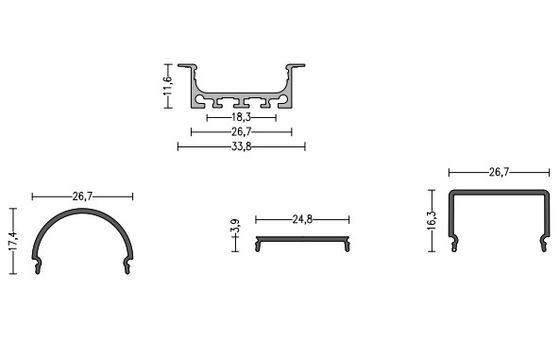

Drawing:
Led aluminum channel with PC diffuser fot Recessed linear lighting 0

Led aluminum channel with PC diffuser fot Recessed linear lighting 1

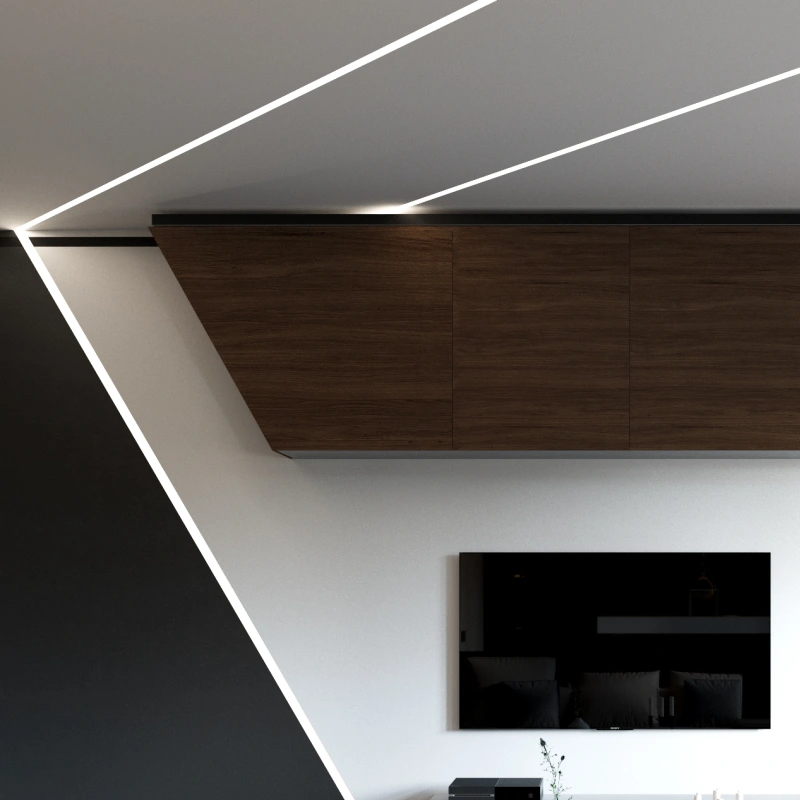

Application

Led aluminum channel with PC diffuser fot Recessed linear lighting 2

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
