6063 T5 ROHS Aluminium LED Strip Channel 18x5mm Bendable LED Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K65
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC
Featured: Bendable Accessories: End Caps, Clips
Usage: Led Strip Heat Sink Supply Ability: 100Tons/Month
Length: Avialable On Request Suitable For Led Strip: PCB Width Up To 12mm
High Light:

6063 T5 Aluminium LED Strip Channel

,

ROHS Aluminium LED Strip Channel

,

18x5mm Bendable LED Aluminium Profile


Product Description

http://www.ledstripaluminiumprofile.com

Super Thin Bendable Led Strip Aluminium Profile Mounted Clips

LED aluminum profiles are suitable for example. At the lower edge of the kitchen cabinets, a worktop light, and at the top to create indirect lighting, home lighting, stair lighting, and indirect lighting. Bathrooms and saunas for lighting, hotel, restaurant, and exhibition lighting. Store shelves to illuminate and flag lights.

Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 12mm width

Main Specifications


Model No.:   K65
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)18*(H)5 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 12mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option


Drawing:

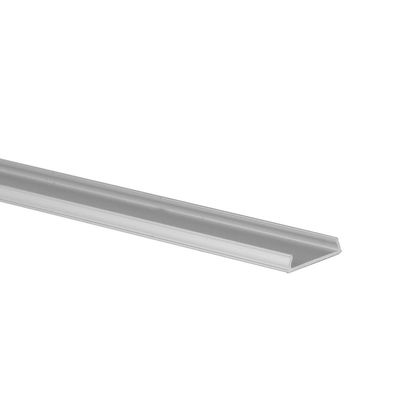

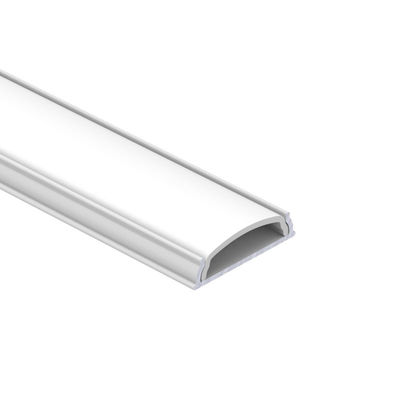

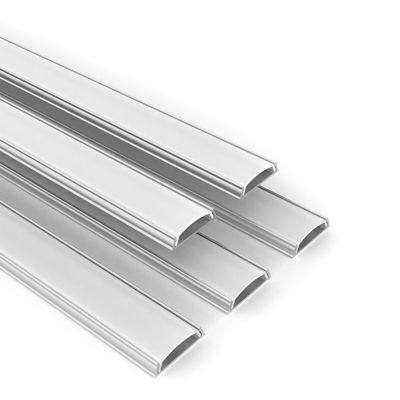

6063 T5 ROHS Aluminium LED Strip Channel 18x5mm Bendable LED Aluminium Profile 06063 T5 ROHS Aluminium LED Strip Channel 18x5mm Bendable LED Aluminium Profile 1
Installation
6063 T5 ROHS Aluminium LED Strip Channel 18x5mm Bendable LED Aluminium Profile 2

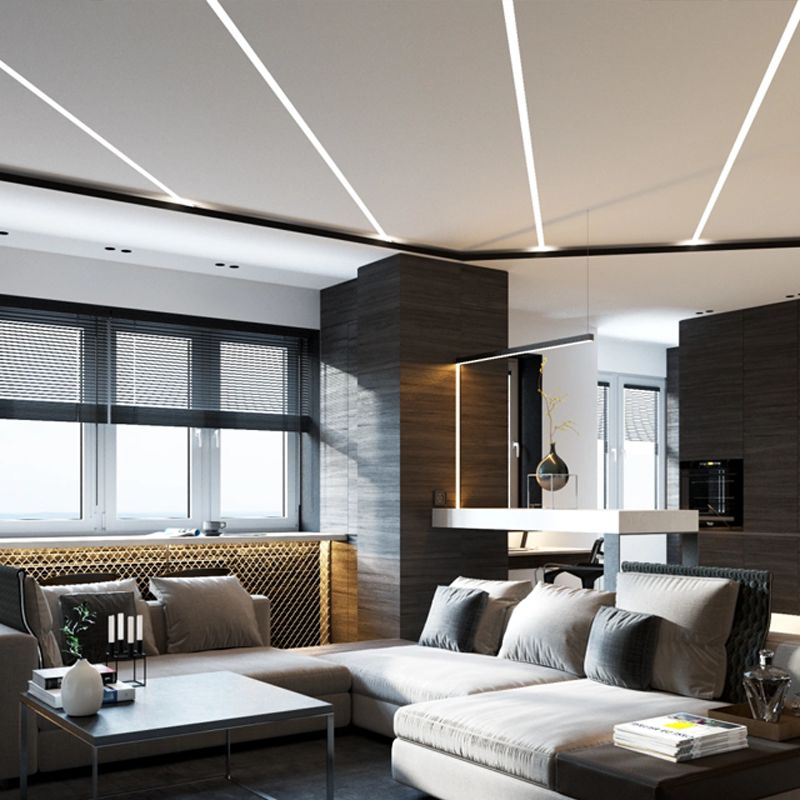

Application

6063 T5 ROHS Aluminium LED Strip Channel 18x5mm Bendable LED Aluminium Profile 3
